Seamless Softbunpans for Softbuns like Hamburger and Hotdogs
Material
Aluminized Steel fully deepdrawn from one sheet
Frame
Bands inside Frame can be either made of Aluminized Steel, Aluminium or solid steel.
Your Coating Options:
Hamburgerpans
| Number of Cups | Ø Cup top aprox. mm | Cups height mm | Pan Dimension ca. (mm) | Itemcode |
|---|---|---|---|---|
| 24 = 6 x 4 | 100 mm (4 inch) | 16.4 | 738 x 503 | 900000 |
| 30 = 6 x 5 | 100 mm (4 inch) | 16.4 | 738 x 614 | 900001 |
| 32 = 8 x 4 | 100 mm (4 inch) | 16.4 | 984 x 510 | 900002 |
| 40 = 8 x 5 | 100 mm (4 inch) | 16.4 | 985 x 612 | 900003 |
| 24 = 6 x 4 | 100 mm (4 inch) | 20 | 738 x 503 | 900004 |
| 24 = 6 x 4 | 100 mm (4 inch) | 32 | 738 x 503 | 900005 |
| 24 = 6 x 4 | 117.5 mm (4.5 inch) | 17 | 812 x 550 | 900006 |
| 24 = 6 x 4 | 117.5 mm (4.5 inch) | 31 | 812 x 550 | 900007 |

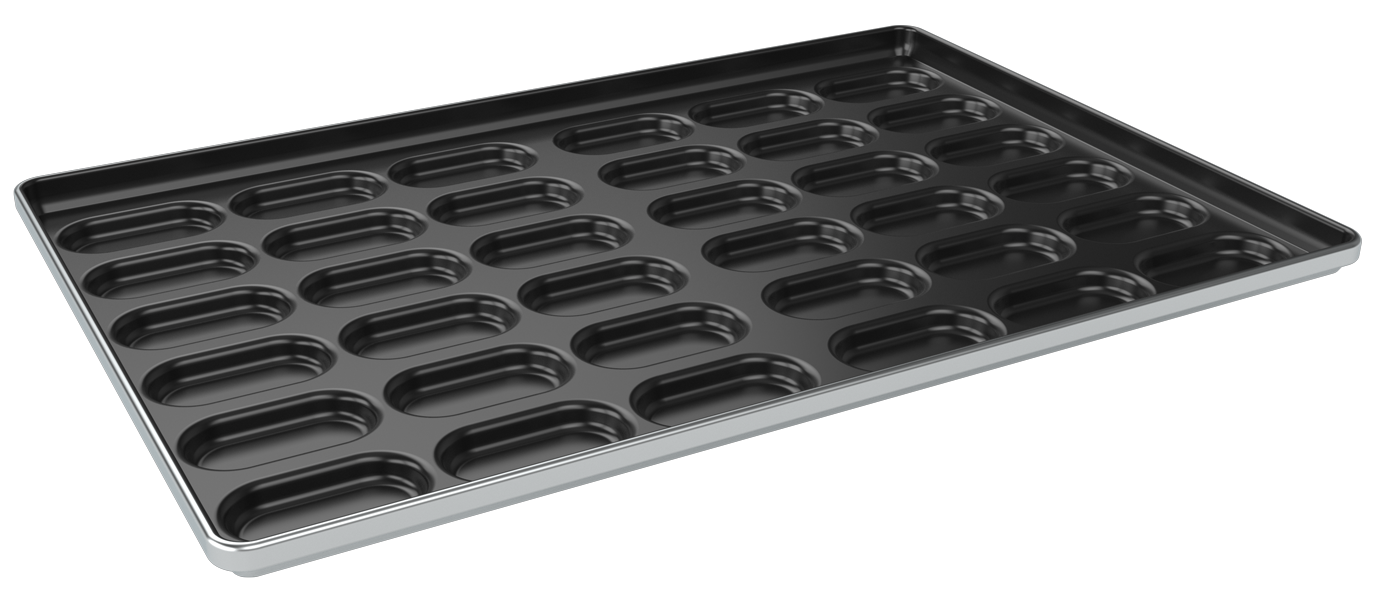

Hotdogpan
| Number of Cups | Cup dimension top aprox. mm | Cups height mm | Pan Dimension ca. (mm) | Itemcode |
|---|---|---|---|---|
| 36 = 6 x 6 | 112.5 x 57.5 | 16.4 | 738 x 503 | 900010 |
| 20 = 4 x 5 | 220 x 59 | 16.4 | 738 x 614 | 900011 |
| 18 = 3 x 6 | 180 x 55 | 16.4 | 984 x 510 | 900012 |
| 15 = 3 x 5 | 210 x 80 | 16.4 | 985 x 612 | 900013 |
| 20 = 4 x 5 | 140 x 70 | 20 | 738 x 503 | 900014 |
Ovalbunpans
| Number of Cups | Cup dimension top aprox. mm | Cups height mm | Pan Dimension ca. (mm) | Itemcode |
|---|---|---|---|---|
| 24 = 6 x 4 | 124 x 105 | 20 | 812 x 550 | 900008 |

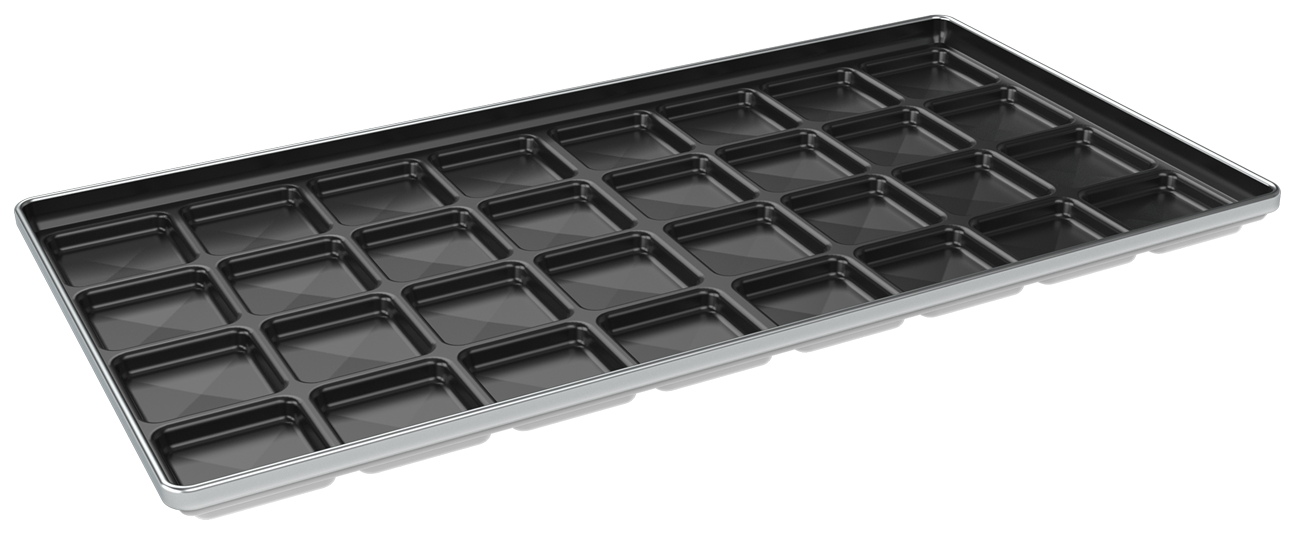

Squared Bun Pan
| Number of Cups | Cup dimension top aprox. mm | Cups height mm | Pan Dimension ca. (mm) | Itemcode |
|---|---|---|---|---|
| 32 = 8 x 4 | 100 mm | 17.5 | 984 x 510 | 900015 |
| 40 = 8 x 5 | 100 mm | 17.5 | 984 x 632 | 900016 |
